Mainline Sewer & Water Installation and Specialty Trench Box Applications
MAINLINE SHIELDS
TITAN SERIES - STEEL TRENCH BOXES
Titan Basic 5
Trenching made affordable. Kundel’s Titan Basic series is a standard, no-frills line of affordable trench safety equipment. This all-steel, solid-welded series is perfect for the occasional user doing mainline work. The Titan Basic 5 model is a series of shields built for the small excavators and works well in 12′ length sewer line installations. The weight, durability and depth ratings for this model are ideal for any contractor. If you have a machine in the 6 to 19 metric ton class, this is a great shield to consider. This will definitely provide the protection you need while increasing mainline sewer production.
Features & Benefits
Tamping Blocks Lifting Lugs Forged Spreader Pins High Taper 3/8” x 3” Cutting Bar Solid Welded
Technical Data
Primary Uses
Occasional Mainline Work
Excavator Weight Range
12K to 38K
Production Depth
14’ to 17’
Side Wall
– 5”
Titan Basic 6
The Titan Basic Series 6 is an all steel trench shield that is designed for occasional mainline work. The 17’ C-Soil Depth rating combined with a sloping program will cover a maximum range of job situations. The weight and durability, as well as its affordability, make it a perfect match for excavators in the 19 to 24 metric ton class. More room allows for faster mainline production for jobs laying up to 18’ lengths of pipe. An alternative depth rating is available. (25’ C-Soil)
Features & Benefits
Tamping Blocks Lifting Lugs Forged Spreader Pins High Taper 3/8” x 3” Cutting Bar Solid Welded
Technical Data
Primary Uses
Occasional Mainline Work
Excavator Weight Range
38K to 48K
Production Depth
15’ to 17’
Side Wall
– 6”
Titan 5 Lite
Titan Lite Shields are built tough, yet are extremely manageable in the trench. The Titan 5 Lite is an all steel trench box that is designed for light duty trenching. Innovative engineering allows for thicker steel on the perimeter, where it is needed, while the continuous vertical and horizontal formed steel members give extreme strength in the trench. Despite its toughness and strength, it is remarkably easy to lift and move in the trench.
Features & Benefits
18” High Tapered, Reinforced Knife Edge for more room in the pipe zone Light Weight Design for easy movement in the trench 5” Solid Steel Sockets 3/4” Thick Pounding Pads 2-1/2” Solid Stacking Lug Bar 3/8” x 3” Cutting Bar Formed Steel Design with Continuous Steel Members Easy Slide Outside Edge Once “C” Soil Depth Rating Perfectly positioned Lift Points for easy handling Internal Shelving for storage of tools and miscellaneous items
Technical Data
Primary Uses
Mainline Work
Excavator Weight Range
21K to 64K
Production Depth
8’ to 16’
Side Wall
5”
Titan Hybrid 5
The Titan Hybrid is a combination of two of our most popular series, Titan 5 Lite and the Titan Plus Two. By incorporating features from both series we were able to build a lightweight trench shield that is capable of going deeper depths. The Titan Hybrid allows you to do deeper jobs that would have required a larger excavator in the past while still giving you all the standard Titan features that keep you investment lasting years longer.
Features & Benefits
Tamping Blocks Lifting Lugs Forged Spreader Pins High Taper 3/8” x 3” Cutting Bar Solid Welded
Technical Data
Primary Uses
Occasional Mainline Work
Excavator Weight Range
38K to 48K
Production Depth
15’ to 17’
Side Wall
– 6”
Titan Plus 3
Strong and durable, yet designed to be light in the trench. Kundel’s Titan Plus series has a strong, all-steel, solid-welded design that has been specially engineered to give extreme strength where it’s needed – without all the extra weight. These shields rely on real world engineering and thick, reinforced formed steel for unwavering toughness in the trench. This series is perfect for the occasional user doing mainline work. The TITAN Plus 3 is an all-steel design trench box that is solid welded and designed for medium duty trench safety work.
Features & Benefits
Formed Steel Design Continuous Steel Members 18” High Tapered Knife Edge Internal Pounding Members Reinforced Knife Edge Internal Stacking System, Easy Slide Outside Edge One C Soil Depth Rating Vertical Reinforced Pounding Area Reinforced Through Wall Sockets 5” Solid Steel Sockets 3/4” Thick Pounding Pads 2-1/2” Solid Stacking Lug Bar 1/2” x 3” Cutting Bar
Technical Data
Primary Uses
Spot Repairs and Mainline Work
Excavator Weight Range
22K to 78K
Production Depth
8’ to 16’
Side Wall
3-1/2”
Titan Plus 5
Strong and durable, yet designed to be light in the trench. Kundel’s Titan Plus series has a strong, all-steel, solid-welded design that has been specially engineered to give extreme strength where it’s needed – without all the extra weight. These shields rely on real world engineering and thick, reinforced formed steel for unwavering toughness in the trench. This series is perfect for the occasional user doing mainline work. The TITAN Plus 5 is an all-steel design trench box that is solid welded and designed for medium duty trench safety work.
Features & Benefits
Formed Steel Design Continuous Steel Members 18” High Tapered Knife Edge Internal Pounding Members Reinforced Knife Edge Internal Stacking System, Easy Slide Outside Edge One C Soil Depth Rating Vertical Reinforced Pounding Area Reinforced Through Wall Sockets 5” Solid Steel Sockets 1-1/4” Thick Pounding Pads 2-1/2” Solid Stacking Lug Bar 1/2” x 3” Cutting Bar
Technical Data
Primary Uses
Mainline Work
Excavator Weight Range
21K to 76K
Production Depth
12’ to 20’
Side Wall
5”
Titan Plus 6
Strong and durable, yet designed to be light in the trench. Kundel’s Titan Plus series has a strong, all-steel, solid-welded design that has been specially engineered to give extreme strength where it’s needed – without all the extra weight. These shields rely on real world engineering and thick, reinforced formed steel for unwavering toughness in the trench. This series is perfect for the occasional user doing mainline work. The TITAN Plus 6 is an all-steel designed trench box that is solid welded and built for medium duty trench safety work.
Features & Benefits
Formed Steel Design Continuous Steel Members 18” High Tapered Knife Edge Internal Pounding Members Reinforced Knife Edge Internal Stacking System, Easy Slide Outside Edge One C Soil Depth Rating Vertical Reinforced Pounding Area Reinforced Through Wall Sockets 7” Solid Steel Sockets 1-1/2” Thick Pounding Pads 3” Solid Stacking Lug Bar 1/2” x 3” Cutting Bar
Technical Data
Primary Uses
Mainline Work
Excavator Weight Range
34K to 94K
Production Depth
16’ to 30’
Side Wall
6-3/4”
Titan Plus 8
Strong and durable, yet designed to be light in the trench. Kundel’s Titan Plus series has a strong, all-steel, solid-welded design that has been specially engineered to give extreme strength where it’s needed – without all the extra weight. These shields rely on real world engineering and thick, reinforced formed steel for unwavering toughness in the trench. This series is perfect for the occasional user doing mainline work. The TITAN Plus 8 is an all-steel designed trench box that is solid welded and built for medium duty trench safety work.
Features & Benefits
Formed Steel Design Continuous Steel Members 18” High Tapered Knife Edge Internal Pounding Members Reinforced Knife Edge Internal Stacking System, Easy Slide Outside Edge One C Soil Depth Rating Vertical Reinforced Pounding Area Reinforced Through Wall Sockets 7” Solid Steel Sockets 1-1/2” Thick Pounding Pads 3” Solid Stacking Lug Bar 1/2” x 3” Cutting Bar
Technical Data
Primary Uses
Mainline Work
Excavator Weight Range
45K to 120K
Production Depth
20’ to 34’
Side Wall
– 8-1/2”
Titan II Series
The Titan Two series is available in a variety of wall thicknesses and sizes to accommodate your job requirements and site conditions. The unique characteristics of this design is a smooth inside wall and great depth to weight ratings. Still built with all of the Titan features, including: Solid welded, All steel design, Forged steel sockets, Internal Pounding members, Safe stack system, internal supports set at 16’’ on center to eliminate checker boarding, and heavy steel reinforcements in the wear zones.
Features & Benefits
Formed Steel Design with Continuous Steel Members 18” High-Tapered, Reinforced Knife Edge – for more room in the pipe zone Internal Pounding Members and Stacking System Easy Slide Outside Edge One C Soil Depth Rating Vertical Reinforced Pounding Area for easy drive Reinforced Through-Wall Sockets 6” (2X) Solid Steel Sockets 1-1/2” Thick Pounding Pads 3” Solid Stacking Lug Bar 1/2” x 3” Cutting Bar
Technical Data
Primary Uses
Mainline Work
Excavator Weight Range
44K to 117K
Production Depth
20’ to 34’
Side Wall
– 8-1/2”

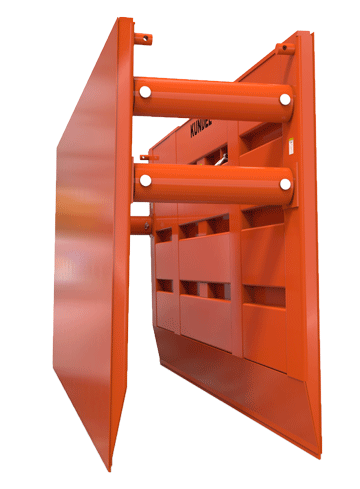

Titan Brute 3
Tough, durable design. The name means what it says: Built tough for keeping the job moving in the roughest conditions, it’s a BRUTE. The all-steel, solid-welded and double wall design of the Titan Brute Shields was made for heavy-duty trench safety work. These shields rely on thick, reinforced formed steel for unwavering toughness in the trench. They were engineered for durability and deep depths. Each shield is crafted with high taper reinforced knife edges, which increase the pipe area by allowing a tighter trench. Uninterrupted reinforced vertical steel end tubes mean “no bend back ends.” It’s also easy to handle with its perfectly positioned lift points. Spreaders are located on the very outside edge for maximum inside clearance.
Features & Benefits
Formed Steel Design with Continuous Steel Members 18” High-Tapered, Reinforced Knife Edge – for more room in the pipe zone Internal Pounding Members and Stacking System Easy Slide Outside Edge One C Soil Depth Rating Vertical Reinforced Pounding Area for easy drive Reinforced Through-Wall Sockets 7” Solid Steel Sockets 1” Thick Pounding Pads 2-1/2” Solid Stacking Lug Bar 1/2” x 3” Cutting Bar
Technical Data
Primary Uses
Spot Repairs and Mainline Work
Excavator Weight Range
32K to 98K
Production Depth
20’ to 34’
Side Wall
– 8-1/2”
Titan Brute 5
Tough, durable design. The name means what it says: Built tough for keeping the job moving in the roughest conditions, it’s a BRUTE. The all-steel, solid-welded and double wall design of the Titan Brute Shields was made for heavy-duty trench safety work. These shields rely on thick, reinforced formed steel for unwavering toughness in the trench. They were engineered for durability and deep depths. Each shield is crafted with high taper reinforced knife edges, which increase the pipe area by allowing a tighter trench. Uninterrupted reinforced vertical steel end tubes mean “no bend back ends.” It’s also easy to handle with its perfectly positioned lift points. Spreaders are located on the very outside edge for maximum inside clearance.
Features & Benefits
Formed Steel Design with Continuous Steel Members 18” High-Tapered, Reinforced Knife Edge – for more room in the pipe zone Internal Pounding Members and Stacking System Easy Slide Outside Edge One C Soil Depth Rating Vertical Reinforced Pounding Area for easy drive Reinforced Through-Wall Sockets 7” Solid Steel Sockets 1-1/2” Thick Pounding Pads 2-1/2” Solid Stacking Lug Bar 1/2” x 3” Cutting Bar
Technical Data
Primary Uses
Mainline Work
Excavator Weight Range
32K to 98K
Production Depth
16’ to 28’
Side Wall
– 5”
Titan Brute 6
Tough, durable design. The name means what it says: Built tough for keeping the job moving in the roughest conditions, it’s a BRUTE. The all-steel, solid-welded and double wall design of the Titan Brute Shields was made for heavy-duty trench safety work. These shields rely on thick, reinforced formed steel for unwavering toughness in the trench. They were engineered for durability and deep depths. Each shield is crafted with high taper reinforced knife edges, which increase the pipe area by allowing a tighter trench. Uninterrupted reinforced vertical steel end tubes mean “no bend back ends.” It’s also easy to handle with its perfectly positioned lift points. Spreaders are located on the very outside edge for maximum inside clearance.
Features & Benefits
Formed Steel Design with Continuous Steel Members 18” High-Tapered, Reinforced Knife Edge – for more room in the pipe zone Internal Pounding Members and Stacking System Easy Slide Outside Edge One C Soil Depth Rating Vertical Reinforced Pounding Area for easy drive Reinforced Through-Wall Sockets 6” (2X) Solid Steel Sockets 1-1/2” Thick Pounding Pads 3” Solid Stacking Lug Bar 1/2” x 3” Cutting Bar
Technical Data
Primary Uses
Mainline Work
Excavator Weight Range
38K to 103K
Production Depth
18’ to 34’
Side Wall
6-3/4”
Titan Brute 8
Tough, durable design. The name means what it says: Built tough for keeping the job moving in the roughest conditions, it’s a BRUTE. The all-steel, solid-welded and double wall design of the Titan Brute Shields was made for heavy-duty trench safety work. These shields rely on thick, reinforced formed steel for unwavering toughness in the trench. They were engineered for durability and deep depths. Each shield is crafted with high taper reinforced knife edges, which increase the pipe area by allowing a tighter trench. Uninterrupted reinforced vertical steel end tubes mean “no bend back ends.” It’s also easy to handle with its perfectly positioned lift points. Spreaders are located on the very outside edge for maximum inside clearance.
Features & Benefits
Formed Steel Design with Continuous Steel Members 18” High-Tapered, Reinforced Knife Edge – for more room in the pipe zone Internal Pounding Members and Stacking System Easy Slide Outside Edge One C Soil Depth Rating Vertical Reinforced Pounding Area for easy drive Reinforced Through-Wall Sockets 6” (2X) Solid Steel Sockets 1-1/2” Thick Pounding Pads 3” Solid Stacking Lug Bar 1/2” x 3” Cutting Bar
